Chinese drone maker DJI today launched the new T30 drone for the agricultural field, it can spray pesticides, but also can be used to sow seeds and spread fertilizer.

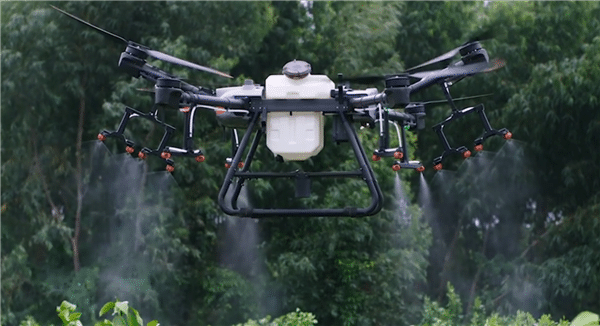

The T30 is equipped with a 30-liter oversized pillbox, a new 16-nozzle layout, a 9-meter oversized spray fan, and 8 groups of solenoid valves with independent frequency control, which can spray 240 mu of pesticides in an hour, with 100 times the efficiency of manual spraying.
DJI pioneered the horizontal opposing six-cylinder double plunger pump design, bringing 8 liters/minute of large flow. It is equipped with a continuous liquid level meter and flow meter, which can monitor the remaining amount of medicine and flow in real-time.
DJI establishes drone emergency rescue alliance, first members cover 26 Chinese provinces
Since 2012, DJI has been involved in the agricultural field, launching a variety of agricultural plant protection drones such as T10, T20, T16, MG-1P, etc., which have operated a total of 900 million mu.

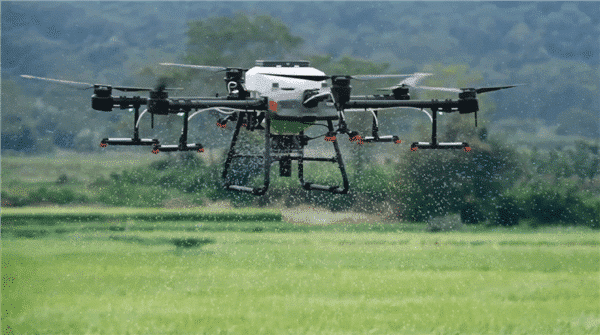

DJI T30 UAV adopts a brand new spreading system, equipped with a 30kg large payload, a 7m wide-spreading width, and can spread 1 ton of urea per hour. Real-time weight monitoring, precise no material alarm.
The whole machine has an IP67 protection level, and the core module adopts independent cavity design, board-level potting, full waterproof connectors, and module connectors to achieve three layers of protection.
Upcoming DJI Matrice 300 drone offers nearly 1 hour of flight time
T30 adopts a new truss structure, which reduces the size of the fuselage by 80% after folding. After the arm and blade are unfolded, the three circumferences are 2858mmร2685mmร770mm; after the arm is folded, the three circumferences are 1170mmร670mmร822mm.
The T30 also carries the industry's first spherical radar system with an added top view angle for blind-zone free flight.
It is equipped with a centimeter-level positioning module, dual FPV cameras, and a high-beam searchlight that doubles the night vision effect for more secure night operations.
T30 adopts a new intelligent flight battery with 29000 mAh, which can cycle 1000 times on a single charge, and can operate up to 30,000 mu, reducing the cost of battery usage by 36%.
