The performance list released by Master Lu today shows that the Snapdragon 865, Snapdragon 855 Plus, and Kirin 990 5G are the top three.
Kirin 990, Samsung Exynos 9820, Snapdragon 845 (2.96GHz), Snapdragon 845 (2.8GHz), Kirin 820, Snapdragon 765G are also among the TOP10.
Master Lu said that to say that the Snapdragon 865 won the Android mobile phone chip championship in the Q1 quarter of 2020, I believe most people have no objections.
From the Q1 mobile phone comprehensive performance list, it is not difficult to find that all the mobile phones on the list are equipped with the Snapdragon 865, which has reached the point of "dominant list".
The Snapdragon 865 uses the Kryo 585 architecture, 7nm process, and uses the same TSMC's new process N7P as the Apple A13.
Under the same energy consumption, 7% performance improvement can be achieved, balancing power consumption and performance. Including one large, three middle, four small total eight cores, the highest frequencies are 2.84GHz, 2.42GHz, 1.80GHz.
Its GPU is Adreno 650, the main frequency has reached 587 MHz. Judging from the data given by Qualcomm officials, the performance has been improved by at least 25% compared with the previous generation.
In addition, Qualcomm Snapdragon 865 is equipped with the fifth-generation AI Engine, which has doubled the performance improvement compared to Qualcomm Snapdragon 855.
At the same time X55 Modem supports NSA and SA dual mode, in addition, it also supports Wi-Fi 6.
According to the upgrade rhythm of 855-855Plus last year, Qualcomm should also perform a small wave of overclocking upgrades in the second half of this year, from 865 to 865Plus.
For example, the specifications of the Snapdragon 865 Plus have been reported, 4x A55 @ 1.8GHz, 3x A77 @ 2.4GHz, 1x A77 @ 3.1GHz. It is likely that the mobile phone will gradually transition in the second half of the year, and the Snapdragon 865 should not dominate for a long time.
After entering the 5G era, a new generation of mid-range 5G SoCs represented by Samsung Exyno 980, Qualcomm Snapdragon 765G and MediaTek Dimensity 1000L have been launched successively. MediaTek Dimensity 800 and UNISOC Tiger T7520 also entered the "PPT stage", Kirin 820 It is no doubt that it has caught up with the "last train"-the mid-range chip has been recognized by more and more people in its cost performance.
From the point of view of running points, the Kirin 820 is currently pressing the Snapdragon 765G. In Master Lu's chip score (only calculating CPU + GPU), 238,617 points were surpassed, surpassing the Snapdragon 765G and MediaTek Dimensity 1000L.
In terms of CPU, Kirin 820 adopts TSMC's 7nm process and adopts a "three-cluster" design on the architecture. It consists of 1 Cortex-A76 Based large core (2.36GHz) + 3 Cortex-A76 Based medium core (2.22GHz) 2 + 4 A Cortex-A55 small core (1.84GHz).
In terms of GPU, Mali-G57 is integrated. Although it belongs to the Mali-G5 series, it uses the same micro-architecture as the latest Mali-G77. Compared with the previous generation G52, G57 has 1.3 times the performance, energy efficiency increased by 30%, performance density increased by 30%, machine learning increased by 60%.
This time, Kirin 820 also prepared 6 computing cores for the integrated GPU. Combined with Huawei 's characteristic GPU Turbo and Kirin Gaming + 2.0 technology, the actual performance of Mali-G57MP6 is good.

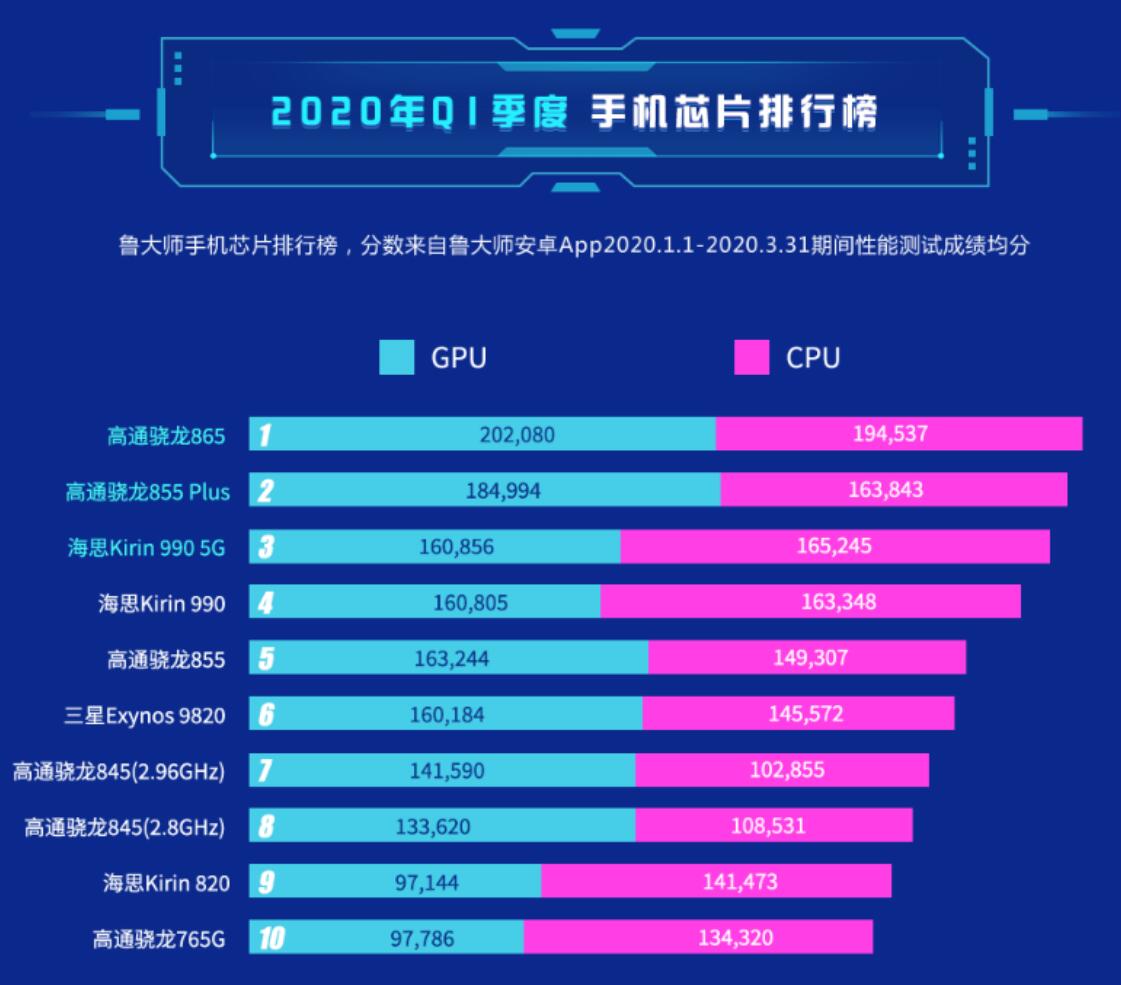

The following is a detailed list:
