On March 26, Huawei released the highly anticipated flagship phones, the Huawei P40 series.
In addition to the P40 and P40 Pro, the P40 series has also joined the higher-end and more flagship P40 Pro+, which is the first time that the P series has a new member of a higher level.
Here are their detailed specifications.
|
Huawei P40
|
|||
|

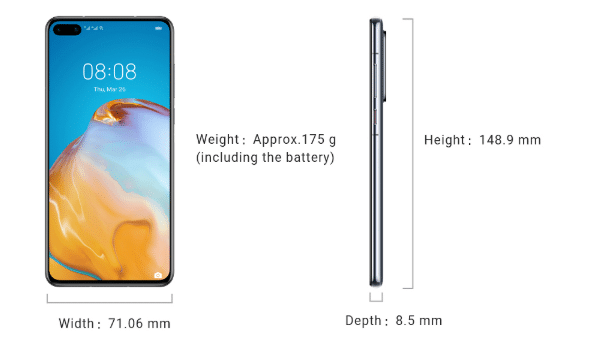

Dimensions and Weight
|
Width: 71.06 mm
Height: 148.9 mm
Depth: 8.5 mm
Weight: Approx. 175 g (including the battery)
 |
||
|
Color
|
* Silver Frost * Blush Gold * Deep Sea Blue * Ice White * Black
|
||
|
Display
|
Size: 6.1 inches
*With a rounded corners design on the display, the diagonal length of the screen is 6.1 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).
Colour: 16.7 million colours
Type: OLED
Resolution: FHD+ 2340 x 1080 Pixels
*The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less.
|
||
|
Splash, Water, and Dust Resistant
|
IP53
*Your device has been tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of classification IP53 as described by the international standard IEC 60529).
Water and dust-proofing are not permanent, and resistance may decrease as a result of normal wear over time. Do not charge the phone when it is wet or in moist environments. Refer to the manual for cleaning and drying instructions. Submersion in liquid and the resulting damage is not covered by the warranty.
|
||
|
Processor
|
HUAWEI Kirin 990 5G
CPU: Octa-core
2 x Cortex-A76 Based 2.86 GHz + 2 x Cortex-A76 Based 2.36 GHz + 4 x Cortex-A55 1.95 GHz
GPU: Mali-G76
NPU: Dual Big Core + Tiny Core NPUs (Neural-network Processing Unit)
|
||
|
Operating System
|
EMUI 10.1 (Based on Android 10)
|
||
|
Memory
|
8 GB RAM + 128 GB ROM
*The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.
|
||
|
Camera
|
Rear Camera:
50 MP Ultra Vision Camera (Wide Angle, f/1.9 aperture) + 16 MP Ultra-Wide Angle Camera (f/2.2 aperture) + 8 MP Telephoto Camera (f/2.4 aperture, OIS)
Autofocus Mode: Autofocus
Image stabilization: OIS + AIS
Zoom Mode: Digital Zoom, Optical Zoom, Hybrid Zoom
Video Recording: Support for 4K (3840 x 2160 pixels) 60fps video recording
Image Resolution: Support up to 8192 x 6144 pixels
Video Resolution: Support up to 3840 x 2160 pixels
Front Camera:
32 MP Selfie Camera (f/2.0 aperture), IR Camera
Video recording: Support for 4K (3840 x 2160 pixels) 60fps video recording
Image resolution: Support up to 6528 x 4896 pixels
Video resolution: Support up to 3840 x 2160 pixels
*The photo pixels may vary depending on the shooting mode.
*The actual image resolution may vary depending on the shooting mode.
|
||
|
Battery
|
3800 mAh (Typical Value)
*The Battery Rated Capacity is 3700 mAh.
**Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual phone may be slightly above or below the nominal battery capacity.
***Non-removable battery. Removing the battery may cause damage to the device. To replace or repair the battery, please visit an authorized HUAWEI Service Centre.
|
||
|
Charging
|
HUAWEI SuperCharge (Max 22.5 W)
*HUAWEI SuperCharge cable and charger is required.
|
||
|
Network
|
Primary SIM card:
5G NR: n1 / n3 / n28 (TX: 703 - 733 MHz, RX: 758 - 788 MHz) / n38 / n41 (2515 M - 2690 MHz) / n77 / n78 / n79
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28 / 32
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8
Secondary SIM card:
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8
*In Dual SIM version, either card slot can be set to accommodate the primary or secondary SIM card.
*Functions available on the live network depend on the situations of carrier's network and related services deployment.
Support dual SIM dual standby
Single SIM model:
One Nano SIM + One eSIM *
or
Dual SIM model:
One Nano SIM + One Nano SIM
*eSIM requires a wireless service plan and allows you to activate a mobile network plan without the use of a Nano SIM. eSIM availability may vary depending on country and carrier. Check with your carrier if your mobile network plan supports eSIM. In Single SIM model, support one Nano SIM and one eSIM and one NM card.
|
||
|
Connectivity
|
Wi-Fi:
802.11a/b/g/n/ac/ax, 2 x 2 MIMO, HE160, 1024 QAM, 8 Spatial-stream Sounding MU-MIMO
*Need router support.
Download and upload peak physical rate up to 2.4 Gbps
*Based on the 160 MHz bandwidth Wi-Fi 6 router.
Bluetooth:
Bluetooth5.1, Support BLE, SBC, AAC, LDAC
Data Cable Port:
USB Type-C, USB 3.1 GEN1*
*This function should be used with the USB 3.1 GEN1 cable (non-standard USB cable, need to be purchased separately) that supports this function.
*The inbox USB cable supports USB 2.0.
Earjack:
USB Type-C earjack
Others:
PC Data Synchronisation
|
||
|
Location
|
GPS (L1 + L5 dual band), AGPS, Glonass, BeiDou (B1I + B1C + B2a Tri-band), Galileo (E1 + E5a dual band). QZSS (L1 + L5 dual band), NavIC
|
||
|
NFC
|
Support Reader Mode, P2P Mode, Card Emulation Mode (SIM*, HCE)
*Only SIM1 support
|
||
|
Sensors
|
Gesture Sensor
Gravity Sensor
Fingerprint Sensor
Hall Sensor
Gyroscope
Compass
Ambient Light Sensor
Proximity Sensor
Laser Sensor
Colour Temperature Sensor
|
||
|
Audio
|
Audio File Format: *.mp3, *.mp4, *.3gp, *.ogg, *.amr, *.aac, *.flac, *.wav, *.midi
|
||
|
Video
|
Video File Format: *.3gp, *.mp4
|
||
|
In The Box
|
Phone (Built-in battery) x 1
Charger x 1
USB Type-C Cable x 1
USB Type-C Earphones x 1
Protective Case x 1 (Not available in Western Europe and Northeast Europe)
Quick Start Guide x 1
Eject Tool x 1
Warranty Card x 1
* May vary in different market. Contact the local sales channel for a more detailed list.
|
||
|
*The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, HUAWEI may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
|
|||
|
Huawei P40 Pro
|
|||
|

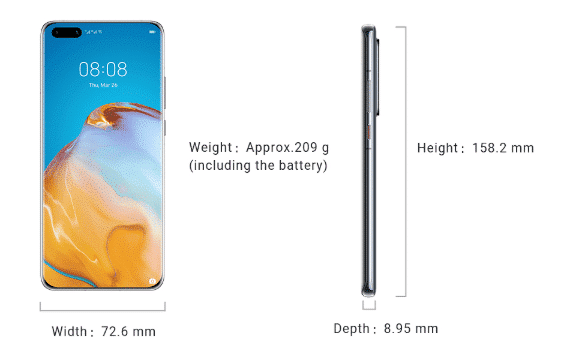

Dimensions and Weight
|
Width: 72.6 mm
Height: 158.2 mm
Depth: 8.95 mm
Weight: Approx. 209 g (including the battery)
*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.
 |
||
|
Color
|
* Silver Frost * Blush Gold * Deep Sea Blue * Ice White * Black
|
||
|
Display
|
Size: 6.58 inches
*With a rounded corners design on the display, the diagonal length of the screen is 6.58 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).
Colour: 16.7 million colours
Type: OLED, up to 90 Hz frame refresh rate
Resolution: 2640 x 1200 Pixels
*The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less.
|
||
|
Splash, Water, and Dust Resistant
|
IP68
*Your device has been tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of classification IP68 as described by the international standard IEC 60529).
Water and dust-proofing are not permanent, and resistance may decrease as a result of normal wear over time. Do not charge the phone when it is wet or in moist environments. Refer to the manual for cleaning and drying instructions. Submersion in liquid and the resulting damage is not covered by the warranty.
*IP68 rating means that based on certain defined test conditions, the device is protected against harmful ingress of static water at up to 1.5 meters, for up to 30 minutes, meanwhile the temperature difference between water and device is not more than 5K.
|
||
|
Processor
|
HUAWEI Kirin 990 5G
CPU: Octa-core
2 x Cortex-A76 Based 2.86 GHz + 2 x Cortex-A76 Based 2.36 GHz + 4 x Cortex-A55 1.95 GHz
GPU: Mali-G76
NPU: Dual Big Core + Tiny Core NPUs (Neural-network Processing Unit)
|
||
|
Operating System
|
EMUI 10.1 (Based on Android 10)
|
||
|
Memory
|
8 GB RAM + 256 GB ROM
*The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.
|
||
|
Camera
|
Rear Camera:
50 MP Ultra Vision Camera (Wide Angle, f/1.9 aperture, OIS) + 40 MP Cine Camera (Ultra-Wide Angle, f/1.8 aperture) + 12 MP SuperSensing Telephoto Camera (f/3.4 aperture, OIS) + 3D Depth Sensing Camera
Autofocus mode: Autofocus
Image stabilization: OIS + AIS
Zoom Mode: Digital Zoom, Optical Zoom, Hybrid Zoom
Video recording: Support for 4K(3840 x 2160 pixels) 60fps video recording
Image resolution: Support up to 8192 x 6144 pixels
Video resolution: Support up to 3840 x 2160 pixels
Front Camera:
32 MP Selfie Camera (f/2.2 aperture) + Depth Camera*
Autofocus Mode: Autofocus
Video Recording: Support for 4K (3840 x 2160 pixels) 60fps video recording
Image resolution: Support up to 6528 x 4896 pixels
Video resolution: Support up to 3840 x 2160 pixels
*Depth Camera also support face unlock with IR.
*The photo pixels may vary depending on the shooting mode.
*The actual image resolution may vary depending on the shooting mode.
|
||
|
Battery
|
4200 mAh (Typical Value)
*The Battery Rated Capacity is 4100 mAh.
**Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual phone may be slightly above or below the nominal battery capacity.
***Non-removable battery. Removing the battery may cause damage to the device. To replace or repair the battery, please visit an authorized HUAWEI Service Centre.
|
||
|
Charging
|
HUAWEI SuperCharge (Max 40 W)
*HUAWEI SuperCharge cable and charger is required.
Wireless HUAWEI SuperCharge (Max 27 W)
*Wireless chargers sold separately. To reach a maximum charging rate of 27 W, need to purchase HUAWEI SuperCharge Wireless Charger (Max 27 W) or HUAWEI SuperCharge Wireless Car Charger (Max 27 W)
|
||
|
Network
|
ELS-NX9
Primary SIM card:
5G NR: n1 / n3 / n7 / n28 (TX: 703-733 MHz, RX: 758-788 MHz) / n38 / n41 / n77 / n78 / n79
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28 / 32
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8
Secondary SIM card:
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8
ELS-N04
Primary SIM card:
5G NR: n1 / n3 / n5 / n28 (TX: 703-733 MHz, RX: 758-788 MHz) / n38 / n41 / n66 / n77 / n78 / n79
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28 / 66
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8
Secondary SIM card:
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28 / 66
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8
*In Dual SIM version, either card slot can be set to accommodate the primary or secondary SIM card.
*Functions available on the live network depend on the situations of carrier's network and related services deployment.
Support dual SIM dual standby
ELS-NX9
Single SIM model:
One Nano SIM + One eSIM *
or
Dual SIM model:
One Nano SIM + One Nano SIM
ELS-N04
Single SIM model:
One Nano SIM + One eSIM *
*eSIM requires a wireless service plan and allows you to activate a mobile network plan without the use of a Nano SIM. eSIM availability may vary depending on country and carrier. Check with your carrier if your mobile network plan supports eSIM. In Single SIM model, support one Nano SIM and one eSIM and one NM card.
|
||
|
Connectivity
|
Wi-Fi:
802.11a/b/g/n/ac/ax, 2 x 2 MIMO, HE160, 1024 QAM, 8 Spatial-stream Sounding MU-MIMO
*Need router support.
Download and upload peak physical rate up to 2.4Gbps
*Based on the 160MHz bandwidth Wi-Fi 6 router.
Bluetooth:
Bluetooth5.1, Support BLE, SBC, AAC, LDAC
Data Cable Port:
USB Type-C, USB 3.1 GEN1*
*This function should be used with the USB 3.1 GEN1 cable (non-standard USB cable, need to be purchased separately) that supports this function.
*The inbox USB cable supports USB 2.0.
Earjack:
USB Type-C earjack
Others:
PC Data Synchronisation
|
||
|
Location
|
GPS (L1 + L5 dual band), AGPS, Glonass, BeiDou (B1I + B1C + B2a Tri-band), Galileo (E1 + E5a dual band), QZSS (L1 + L5 dual band), NavIC
|
||
|
NFC
|
Support Reader Mode,P2P Mode,Card Emulation Mode (SIM*, HCE)
*Only SIM1 support
|
||
|
Sensors
|
Gesture Sensor
Gravity Sensor
Infrared Sensor
Fingerprint Sensor
Hall Sensor
Gyroscope
Compass
Ambient Light Sensor
Proximity Sensor
Colour Temperature Sensor
|
||
|
Audio
|
Audio File Format: *.mp3, *.mp4, *.3gp, *.ogg, *.amr, *.aac, *.flac, *.wav, *.midi
|
||
|
Video
|
Video File Format: *.3gp, *.mp4
|
||
|
In The Box
|
Phone(Built-in battery) x 1
Charger x 1
USB Type-C Cable x 1
USB Type-C Earphones x 1
Protective Case x 1 (Not available in Western Europe and Northeast Europe)
Quick Start Guide x 1
Eject Tool x 1
Warranty Card x 1
* May vary in different market. Contact the local sales channel for a more detailed list.
|
||
|
*The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, HUAWEI may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
|
|||
|
Huawei P40 Pro+
|
|||
|

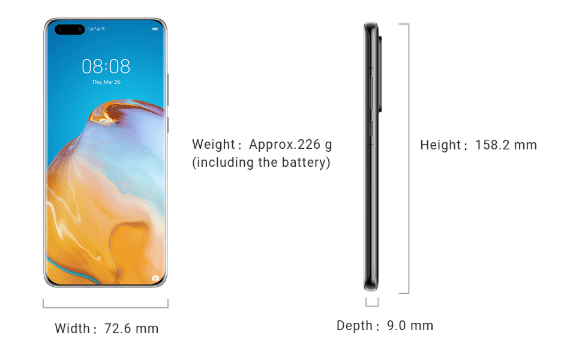

Dimensions and Weight
|
Width: 72.6 mm
Height: 158.2 mm
Depth: 9.0 mm
Weight: Approx. 226 g (including the battery)
*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.
 |
||
|
Color
|
* White Ceramic * Black Ceramic
|
||
|
Display
|
Size: 6.58 inches
*With a rounded corners design on the display, the diagonal length of the screen is 6.58 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).
Colour: 16.7 million colours
Type: OLED, up to 90 Hz frame refresh rate
Resolution: 2640 x 1200 Pixels
*The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less.
|
||
|
Splash, Water, and Dust Resistant
|
IP68
*Your device has been tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of classification IP68 as described by the international standard IEC 60529).
Water and dust-proofing are not permanent, and resistance may decrease as a result of normal wear over time. Do not charge the phone when it is wet or in moist environments. Refer to the manual for cleaning and drying instructions. Submersion in liquid and the resulting damage is not covered by the warranty.
*IP68 rating means that based on certain defined test conditions, the device is protected against harmful ingress of static water at up to 1.5 meters, for up to 30 minutes, meanwhile the temperature difference between water and device is not more than 5K.
|
||
|
Processor
|
HUAWEI Kirin 990 5G
CPU: Octa-core
2 x Cortex-A76 Based 2.86 GHz + 2 x Cortex-A76 Based 2.36 GHz + 4 x Cortex-A55 1.95 GHz
GPU: Mali-G76
NPU: Dual Big Core + Tiny Core NPUs (Neural-network Processing Unit)
|
||
|
Operating System
|
EMUI 10.1 (Based on Android 10)
|
||
|
Memory
|
8 GB RAM + 512 GB ROM
*The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.
|
||
|
Camera
|
Rear Camera:
50MP Ultra Vision Camera (Wide Angle, f/1.9 aperture, OIS) + 40MP Cine Camera (Ultra-Wide Angle, f/1.8 aperture) + 8MP SuperZoom Camera (10X Optical Zoom, f/4.4 aperture, OIS) + 8MP Telephoto Camera (3X Optical Zoom, f/2.4 aperture, OIS) + 3D Depth Sensing Camera
Autofocus Mode: Autofocus
Image stabilization: OIS + AIS
Zoom Mode: Digital Zoom, Optical Zoom, Hybrid Zoom
Video Recording: Support for 4K (3840 x 2160 pixels) 60fps video recording
Image Resolution: Support up to 8192 x 6144 pixels
Video Resolution: Support up to 3840 x 2160 pixels
Front Camera:
32 MP Selfie Camera (f/2.2 aperture) + Depth Camera*
Autofocus Mode: Autofocus
Video recording: Support for 4K (3840 x 2160 pixels) 60fps video recording
Image resolution: Support up to 6528 x 4896 pixels
Video resolution: Support up to 3840 x 2160 pixels
*Depth Camera also support face unlock with IR.
*The photo pixels may vary depending on the shooting mode.
*The actual image resolution may vary depending on the shooting mode.
|
||
|
Battery
|
4200 mAh (Typical Value)
*The Battery Rated Capacity is 4100 mAh.
**Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual phone may be slightly above or below the nominal battery capacity.
***Non-removable battery. Removing the battery may cause damage to the device. To replace or repair the battery, please visit an authorized HUAWEI Service Centre.
|
||
|
Charging
|
HUAWEI SuperCharge (Max 40 W)
*HUAWEI SuperCharge cable and charger is required.
Wireless HUAWEI SuperCharge (Max 40 W)
*Wireless chargers sold separately. To reach a maximum charging rate of 40 W, need to purchase HUAWEI SuperCharge Wireless Charger Stand(Max 40 W) and HUAWEI 65 W Power Adapter.
|
||
|
Network
|
Primary SIM card:
5G NR: n1 / n3 / n28 (TX: 703-733 MHz, RX: 758-788 MHz) / n38 / n41 / n77 / n78 / n79
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8
Secondary SIM card:
4G FDD LTE: Bands 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 12 / 17 / 18 / 19 / 20 / 26 / 28
4G TDD LTE: Bands 34 / 38 / 39 / 40 / 41
3G WCDMA: Bands 1 / 2 / 4 / 5 / 6 / 8 / 19
2G GSM: Bands 2 / 3 / 5 / 8
*In Dual SIM version, either card slot can be set to accommodate the primary or secondary SIM card.
*Functions available on the live network depend on the situations of carrier's network and related services deployment.
*HUAWEI P40 Pro+ does not support eSIM.
|
||
|
Connectivity
|
Wi-Fi:
802.11a/b/g/n/ac/ax, 2 x 2 MIMO, HE160, 1024 QAM, 8 Spatial-stream Sounding MU-MIMO
*Need router support.
Download and upload peak physical rate up to 2.4 Gbps
*Based on the 160 MHz bandwidth Wi-Fi 6 router.
Bluetooth:
Bluetooth5.1, Support BLE, SBC, AAC, LDAC
Data Cable Port:
USB Type-C, USB 3.1 GEN1*
*This function should be used with the USB 3.1 GEN1 cable (non-standard USB cable, need to be purchased separately) that supports this function.
*The inbox USB cable supports USB 2.0.
Earjack:
USB Type-C earjack
Others:
PC Data Synchronisation
|
||
|
Location
|
GPS (L1 + L5 dual band), AGPS, Glonass, BeiDou (B1I + B1C + B2a Tri-band), Galileo (E1 + E5a dual band), QZSS (L1 + L5 dual band), NavIC
|
||
|
NFC
|
Support Reader Mode, P2P Mode, Card Emulation Mode (SIM*, HCE)
*Only SIM1 support
|
||
|
Sensors
|
Gesture Sensor
Gravity Sensor
Infrared Sensor
Fingerprint Sensor
Hall Sensor
Gyroscope
Compass
Ambient Light Sensor
Proximity Sensor
Colour Temperature Sensor
|
||
|
Audio
|
Audio File Format: *.mp3, *.mp4, *.3gp, *.ogg, *.amr, *.aac, *.flac, *.wav, *.midi
|
||
|
Video
|
Video File Format: *.3gp, *.mp4
|
||
|
In The Box
|
Phone (Built-in battery) x 1
Charger x 1
USB Type-C Cable x 1
USB Type-C Earphones x 1
Protective Case x 1 (Not available in Western Europe and Northeast Europe)
Quick Start Guide x 1
Eject Tool x 1
Warranty Card x 1
*May vary in different market. Contact the local sales channel for a more detailed list.
|
||
|
*The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, HUAWEI may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
|
|||
